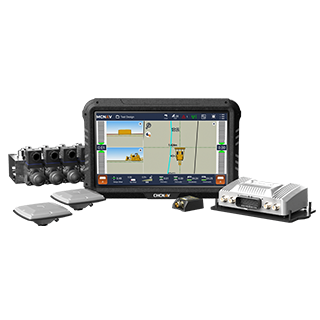

Automatic 3D Control System for Dozers
± 2cm with Dual GNSS + 100Hz IMU + DO-Tech algorithm.
Intelligent hydraulic control at varying speeds and in any position.
10.1” tablet and simple calibration process.
Support Pilot & PVG Dozers, multiple coordinate and design file formats.

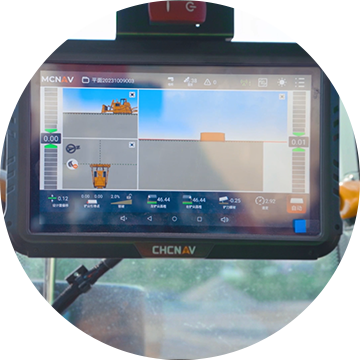

Operate efficiently with the TD63 Pro's intuitive software and 10.1" touchscreen tablet. The user-friendly interface ensures easy operation and quick learning, allowing operators to become proficient in no time.
Benefit from the TD63 Pro's automatic real-time blade control, which adjusts the blade to the design surface to achieve finished grade accuracy in less time. It eliminates manual staking and minimizes errors and rework, significantly increasing productivity.

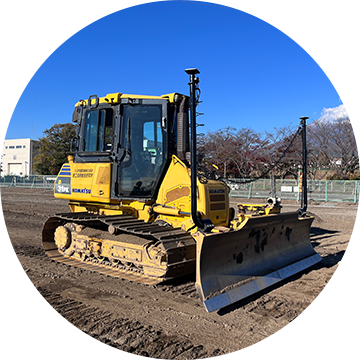

The TD63 Pro's high-precision dual GNSS and IMU sensors provide precise 3D positioning and heading, ensuring that the grader blade is precisely controlled regardless of the machine's position, improving the efficiency of grading operations.
The system is compatible with all grader models and supports TT450S, Transparent and Satel_3AS radio protocols, as well as crd, dc, cal, lok, jxl and loc coordinate calibration files. Rodx, DXF and LandXML formats are supported for collaboration on any project.
The TD63 Pro system features advanced design and technology, using a single IMU sensor and an advanced model algorithm for efficient, accurate calibration. This reduces installation time and allows calibration to be completed in just 15 minutes.
The TD63 Pro, including the IMU sensor and GNSS antennas, is designed to withstand harsh environments. Its durability ensures reliable performance in challenging field conditions, reducing downtime and maintenance costs.
Land Clearing
Foundation Preparation
Dam and Levee Construction
Embankment Construction
Automatic 3D Control System for Dozers
SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?
Contact CHC Navigation to create a customized solution tailored to meet the specific needs of your business.
MCNAV TX73
3D guidance system for excavators
CHCNAV TG63
Automatic 3D Grader Control System
CHCNAV iBase
Integrated GNSS Base for Optimal Ease of Use
CHCNAV i93
Advanced IMU-RTK with Visual Surveying

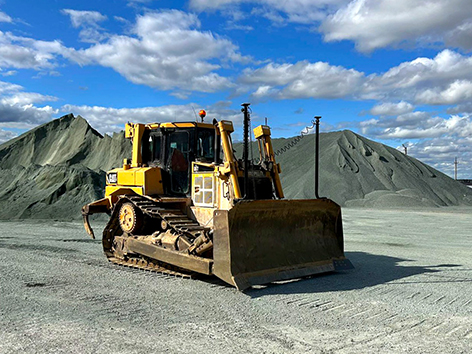

The TD63 Pro system is a 3D automatic control system for bulldozers. Using GNSS, IMU, and hydraulic control modules, it automatically adjusts blade height based on design data. It is widely used for ground and subgrade leveling, as well as other high-precision construction tasks. The TD63 Pro improves construction accuracy and simplifies operation, increasing overall efficiency.
The system is compatible with most major bulldozer brands and models that use pilot hydraulic controls.
The TD63 Pro system boosts accuracy and efficiency, achieving target precision in just 1 to 2 passes, compared to 3 to 4 with manual operation. It eliminates the need for surveyors to measure or stake out. Labor costs are reduced, as operators require less blade adjustment and leveling experience. Additionally, the system lowers fuel consumption and minimizes mechanical wear, reducing overall operational costs.
RTCM3.0/RTCM3.1/RTCM3.2 are supported.
